Our Services
Cleanrooms System
The interpretation of a cleanroom can vary from industry to industry and customer to customer, with each application being designed to suit the idiosyncratic needs of a company.
A recognized definition of a cleanroom is A room in which the concentration of airborne particles is controlled and which contains one or more clean zones
The goal of cleanroom is to provide a specs in which users can build critical components and test products for performance, durability without having to worry about contamination. Cleanroom allows users to simulate environment in which an item will be used. Inside control environment testing is much more efficient and results are more accurate. Cleanroom are essential to applications that rely on pristine air quality and particle elimination

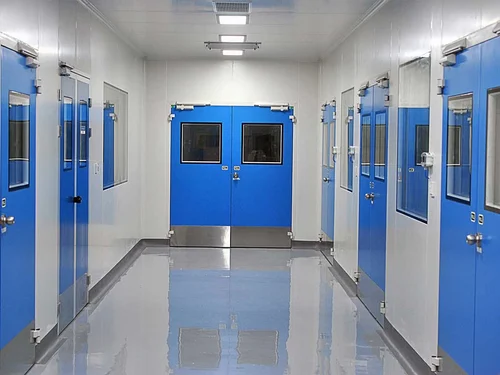

Modular Cleanroom Partition
Modular cleanroom partition products have been developed for use by, and in conjunction with leading cleanroom designer and end users. Clean Room Systems from Innovus can be applied to any clean room facility or manufacturing setup requiring controlled environment. These systems can be integrated with new as well as existing systems. Modular & Simplified construction methods are used for reducing overall construction time and cost. Features. Connection between partition and existing fabric will utilise our pre-formed closing channel and special detail can be produced where required, again with various coving options available to meet specification. Integration between partition head and ceiling is achieved by utilization of standard top channel together with various coving option, if required. The partition walls can be designed to facilitate and incorporate the various design principles, utilised in laminar and nonlaminar airflow cleanrooms.

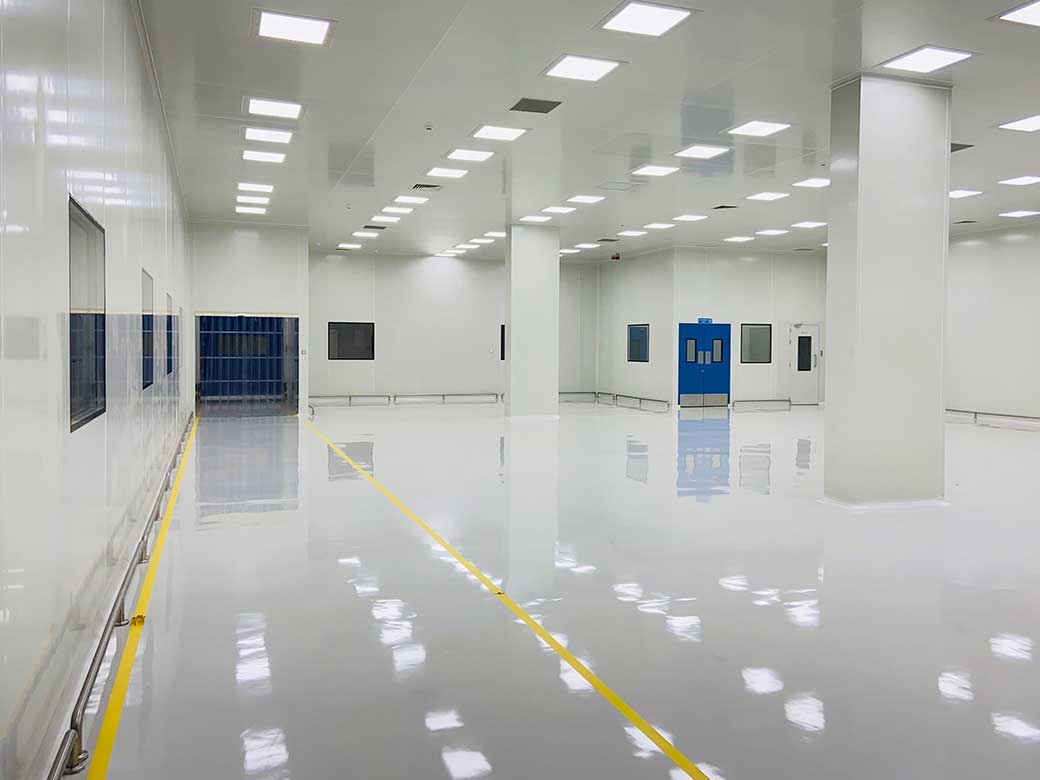

Walkable | Non-walkable Ceiling
Cleanroom ceiling system is mainly composed of modular cleanroom panel and ceiling system.The ceiling system can be perfectly connected with the modular cleanroom panel system products.The ceiling system connection gap is the same as the gap width to ensure the appearance of a clean room, cleanroom panel sheet is very resistant to bending and has very strong characteristics. The ceiling membrane is of vital importance to the integrity and performance of any cleanroom. The concept of ceiling can vary from simple suspended layin grid types to sophisticated Walk on construction plenums.
The INNOVUS Walk on ceiling is a product that offer amazing option in creating custom and system build solutions the most complicated of enclosures for the demanding environments of the cleanroom users. Subject to specifications, each plank will hold a superimposed load of 25Kg/m2 together with point load 100 kilos.

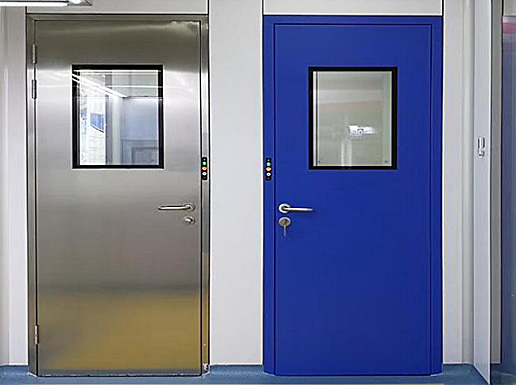

Cleanroom Flush Door
Cleanroom Door is manufactured from galvanized/stainless steel sheets with lock formed edges. Insulated and bonded with honeycomb paper or polyurethane foam forming a rigid flush fitting with; innovative flush double glazed finished with pure polyester powder coating of 60-80 micron forming a smooth surface finish. Doors are compatible for avoiding the air existing from the room. These doors mechanically interlocked vertical edges which makes door light & heavy use. The vertical edges provide strength and rigidity for the door

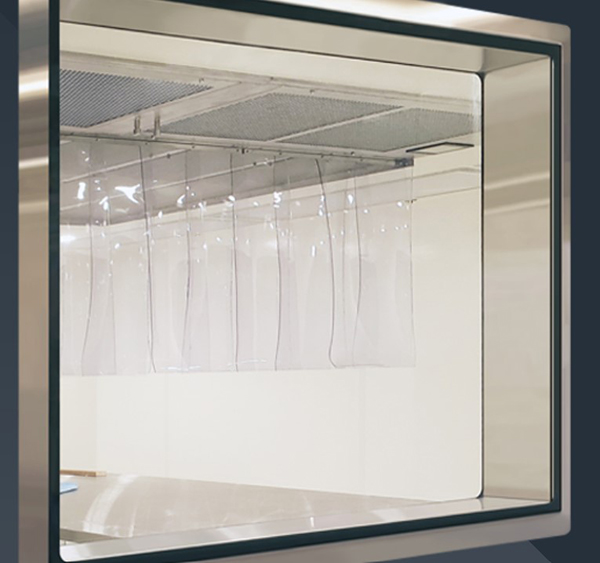

Double Glazed Vision Panel
The frame work for the Single / Double glazed vision panel shall be fabricated from Aluminium /G1 Sections. The framework should be fixed on both the faces of the wall. The Window frame shall then be lined on one or both the faces with 5-33mm plain toughened glass with help of double sided adhesive tape. The periphery of the glass shall be filled with suitable sealant either silicon or acrylic as per requirement. The window shall also be provided with silica gel breather for absorbing any moisture trapped inside the vision panel.
Epoxy Flooring
Omkar Industrial Solution will provider you best solution for epoxy flooring needs for the cleanroom .
One of the main criteria of flooring selection in clean room is non holding of dust particles to the floor and non shredding, hence based on usage of material handling equipments and clean class.
The type of flooring are epoxy and PU flooring.
We offer you thickness up to 2mm / 3mm / 4mm .
